These are the three main building blocks in the Rife Machine. On the left is the computer or signal generator, this is the brain of the machine. In the center is the transistor. This is the heart of the machine. To the right of the transistor is the coil. This is the power house of the machine. To the right of the coil is the bulb. This is what emits the energy.
Click on the below link to learn how to build a good solid single coil Rife Machine.
(1) How to build a Rife Machine. Quick easy Rife Machine build. - YouTube
Click on the below link to learn how to build the box that I put the Rife Machine in.
(2) December 1, 2024 - YouTube
Click on the link below to learn how to build the stand that the bulb sits in.
Parts
We provide illustrations on how to build a Rife Machine in our book, . It is designed to not waste your time and to allow for a quick and easy build. Below are a list of parts that are used to build a basic Rife Machine.
This part is the FG 2000 frequency generator. It can be found at gme technology.com The e-mail contact is info@gmetechnology.com

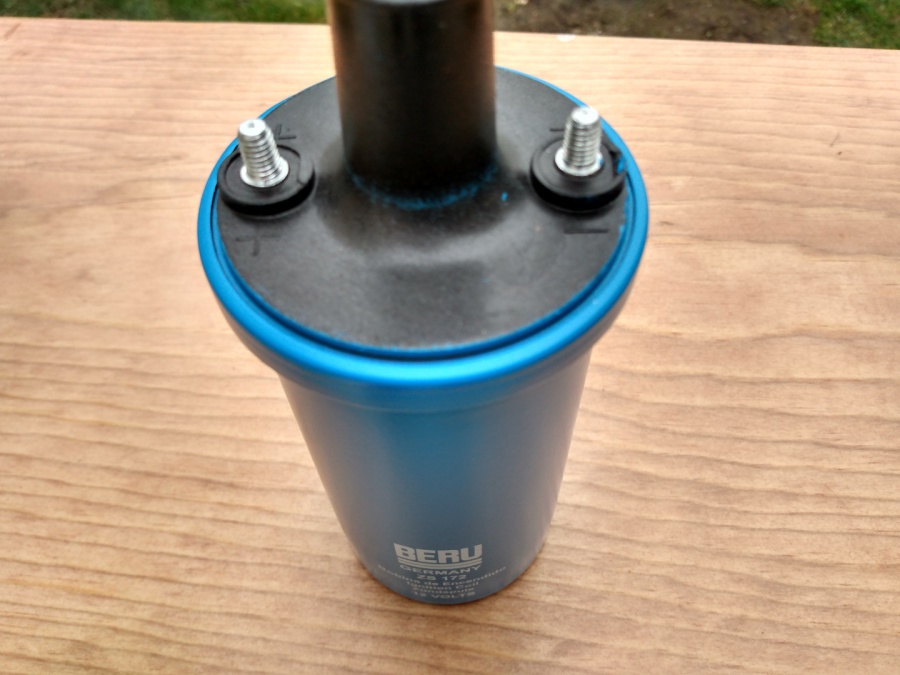

12 volt auto ignigtion coil Beru is the brand name.
The coil is the amplifier. Generally two of these provide the power that goes through the bulb. This creates an e-field and also an electromagnetic field. The cost for these are 25 to 38. I generally order them from autopartsforgermancars.com You can also find them at amazon.
The part below is the socket for the transistor. The mouser part number is 534-4608 It can be found at mouser.com
The part below is the heat sink for the transistor. The mouser part number is going to be 532-506007B00 It can be found at mouser.com
Darlington Transistor 50 amp 100 volt. The heart of the machine. The part number is MJ11032. The cost for this part is 5. Generally I find this part on ebay.
Bridge Rectifier. The cost for the bridge rectifier is 3-5. Brigold 5 pcs KBPC5010 bridge rectifier diode 50A 1000v single phase full wave 50 amp. I generally order these from amazon. Many electronic stores also sell the part.
This part is the bojack 4700uf 35 V 4700 MFD Aluminum Electrolytic Capacitor. Generally two are needed to build a machine. You can find this part at numerous electronic stores and on amazon.

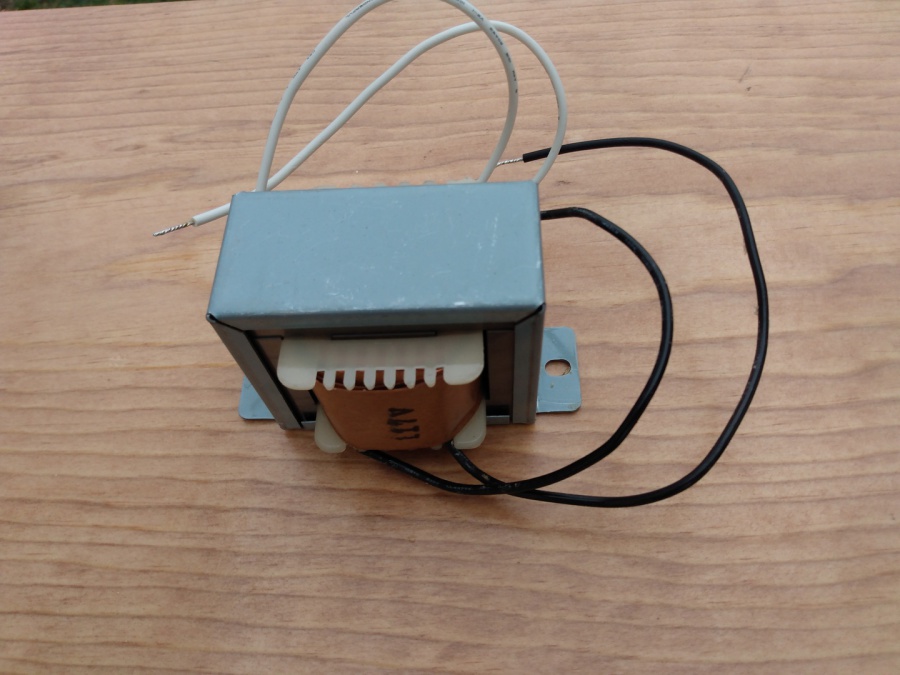

The cost for the transformer is 17 each. Generally two are used is each machine. Jameco Valuepro P-8658 power transformer 12v at 4amp 117 vac wire leads 2.4w x 4L x 2.7H You can find these at Jameco.com or on amazon.
On/Off toggle switch. The cost for this is 5. Generally I purchase this from home Depot.
Inline fuse holder. The cost for this part is around 5. I generally find this part at Home Depot. The fuse holder is for 1/4 X 1-1/4 glass fuse. There are numerous places on the internet where you can find this part.
Below is the copper pc board that I use to solder parts onto. I usually get the Chanzon single sided 10 pcs copper clad laminate pcb 7x10 cm 4x2.7 inch. This can be found on amazon or many other elctronic stores.
Below is the fuse that I use It is 10amp !/4 X1 1/4 fuse. There are numerous places yout can get this fuse. I get them at Menards or Home Depot.

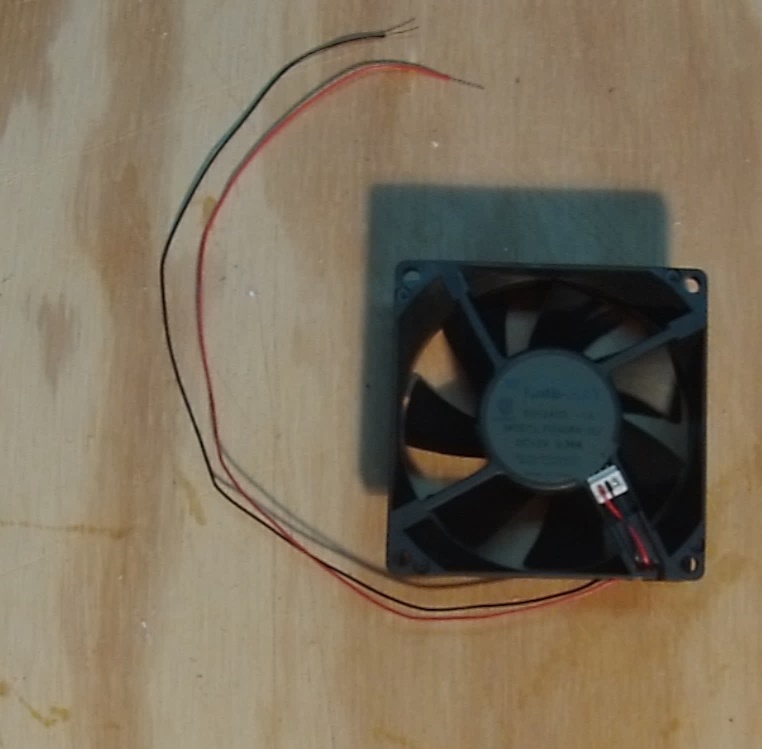

12 volt fan. The cost for this part is about 3 each. Winsinn 50mm fan 12v 5010 hydraulic bearing, Brushless cooling 50mm x 10 mm 2 pin (Pack of 5pcs) You can find this fan on amazon.
BNC Cable. The length of the cable is generally five feet. The cost for the cable is 10-15. Uxcell RG58 coaxial cable with BNC male to bnc male connectors 50 ohm 10ft 2pcs. I generally purchase this cable from amazon.
Below is the economy bulb that I purchase from T&D Neon. The phone number for T&D neon is 248-730-4297 The bulb is a ten inch length straight tube. I also purchase the Phanotron tube from billchebsplasmatubres.com Look for bill chebs plasma tubes. When you do a search.
The parts listed below are the parts for the dual frequency Rife Machine. Note many of the parts used for the dual frequency Rife Machine are the same parts that are used for the single coil Rife Machine. I will soon have a video up describing how to build a dual frequency Rife Machine.
This is the FG 2000 frequency generator. Two of these are required for the dual frequency Rife Machine. I purchase these from GME Technology.com the contact info for gme technoloy is info@gmetechnology.com
Two auto coils are needed for the dual frequency Rife Machine. I generally purchase them from autopartsforgermancars.com They are the blue beru 12 volt auto ignition coils. You can also find them on Amazon.
Two capacitors are needed. You can find them at numerous electronic stores. These are bojack 18x30mm 4700uf 35 volt capacitors. You can find them on Amazon.
Two 12 volt 4 amp transformers are needed. The Jameco transformer that is pictured here can be found on Amazon.
This part is the Darlington transistor. It is a 50 amp transistor. The part number is mj11032 it can be found on ebay. Numerous electrical suppliers like mouser also carry the part.
This is the socket for the mj11032 transistor. It can be found at mouser.com The mouser part number is 534-4608
This is the heat sink for the mj11032 transistor. The mouser part number is going to be 532-506007B00
This is the fan that is used to cool the mj11032 transistor. It is also used to cool the Toshiba transistor. It is a Winsinn 50mm fan 12v 50mmX10mm It can be found on amazon.
This is a Bussmann inline fuse holder for 1/4 X 1-1/4 glass fuse. It can be found at numerous hardware stores.
I put a Bussmann 10a 1/4 x 1-1/4 fuse in the fuse holder. These can be found at numerous hardware stores.
This is copper clad PCB laminate circuit board, single side, 4x 2.7 in (10Pcs) I generally buy this from amazon.com
This is the bridgold KBPC5010 bridge rectifier diode, 50A 1000V single phase, full wave 50 amp 1000 volt electronic silicon diodes 5 (pcs) these can be found on amazon. Numerous electronic stores also carry this part.
This is the GE Ultra Max G series electronic ballast. GE 232 Max-G-N Product code 72275. I frequently find this part on e-bay.
This is the Toshiba Mosfet 900v N-CH 3A The Mouser part number is 757-2SK3564STA4QM It can be found at mouser.com
This is uxcell RG58 coaxial cable with bnc male to bnc male connectors 50 ohm 10 ft 2pcs.
This part is a basic wire lead toggle switch. It is a basic on/off toggle switch. It can be found at numerous hardware stores.
